This cable mounted RF connector is only available to purchase as part of a cable assembly
PLEASE NOTE: Product images are a representation only, see drawing for full specification
Active IP67/IP68 - Waterproof

TNC Straight Jack Standard Polarity Flange mount With O-ring IP67/IP68

SPECIFICATION

TNC
Interface Type
Standard Polarity Jack
Polarity
Straight
Orientation
Flange
Mount Type
With O-ring
O-Ring
Female
Gender
3GHz
Working Frequency (Up To)
No
Isolated?
Cable
Connectivity Type
Standard
Thread

PRODUCT RESOURCES

-

Connector Resources

For CABLE 345 RF - RFCT-TNC013-F85 for Habia 0.085SF cable, 6GHz

Choose 3D file format:

Technical Drawing

Download .PDF

Standard cable assemblies summary

A summary of the existing standard GradConn cable assemblies that contain the connector/s above.


Active IP67/IP68 - Waterproof

CABLE 345 RF

Cable Assembly - SMP Right Angle Jack Standard Polarity to TNC Straight Jack Standard Polarity Flange mount With O-ring IP67/IP68

50Ω
Impedance
-40 to 150°C
Temperature Range
Nautilus Waterproof Connector
DC to 6GHz
Frequency

RELATED RESOURCES

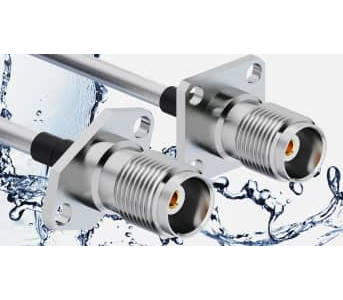

  • Flange Mount TNC connectors with IP67/68 rating
